IP-based Door Access Control Panel C5S140 Package A


Out of stock

SKU C5S140 Package A Category
SKU C5S140 Package A Category


Out of stock

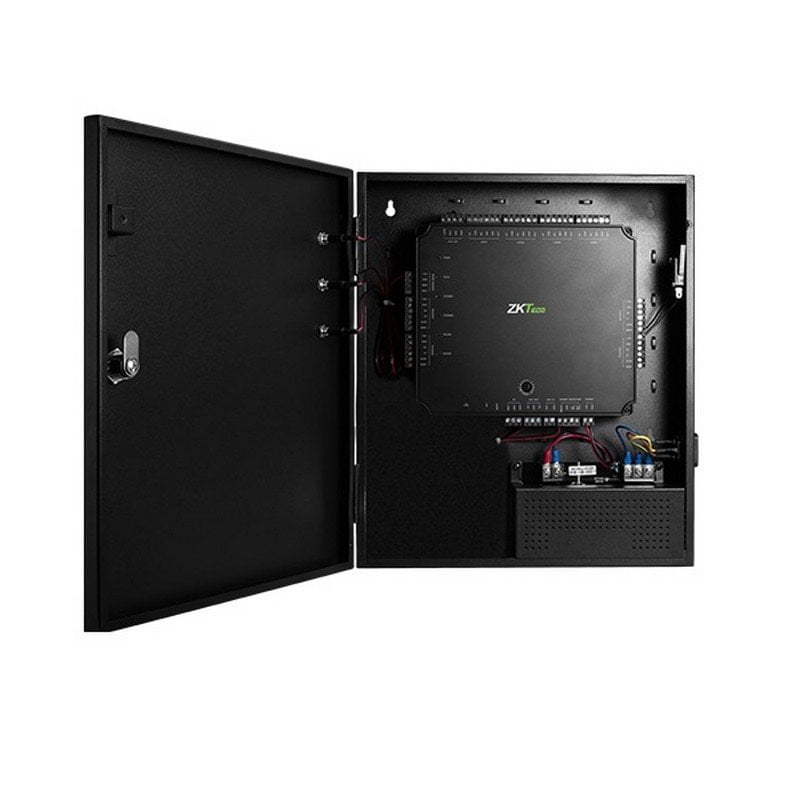

ZKTeco C5S140 Package A is a door controller with TCP / IP support. C5S140 kit including metal box and power supply.


Support for all types of RFID card readers, such as ZK series KR Wiegand readers and RS485 readers; Support for HID Prox, iClass and XceedID cards.

New design

The new design distinguishes the new controller from the old C3 series. Plus there is a protective case.

More than a controller

Additional access control functions and connection of various devices. After configuration, additional inputs / outputs can control lights, alarms, IR barriers, etc. Additional locking devices and controllers can be connected.

Additional functions

Protection against entry without exit, support for multiple types of cards, identification by visitor password, support for connecting various devices to the AUX input / output.


InBio controllers can be networked via TCP / IP or RS-485. The auto search tool makes it easy to configure any of the controllers on your network.


Supports 100,000 RFID cards and 200,000 event log. Data loss protection. Can work autonomously without network connection.


The controllers are available in three versions – for 1, 2 and 4 doors. Controllers can be combined into groups for projects of any complexity.

For software developers

There is an SDK for third-party software developers. Upon request, the controller firmware can be changed to support third-party software.

  • Unit of measurement: 1 piece
  • Dimensions (mm): 356x64x309
  • Weight (kg): 3.70
  • Number of controlled doors 4
  • Number of Wiegand readers: 4; RS485: 8
  • Reader types 26-bit Wiegand, others on request
  • Inputs 9; Exit button: 4; AUX input: 1; Door sensor: 4
  • Outputs 5; Lock: 4; AUX output: 1
  • Hardware platform PROCESSOR: 1.2GHz; Flash: 256Mb; RAM: 128Mb
  • RFID card memory 100,000
  • Event log memory 200,000
  • Communication TCP / IP, RS-485, WI-FI
  • Mounting Wall
  • Power supply DC 12V 1.5A
  • Dimensions 197 x 171 x 31.6 mm
  • Working temperature -10 ~ 50 ° C
  • Humidity 20% ~ 80%


  • Controller 1
  • Case 01 metal case 1
  • ZKPSM030B
  • DC12V / 5A power supply,
  • backup battery charger 1
  • FR107 Diode for lock 4
  • Key key for housing 2
  • ZKAccess Disk software,
  • user manual 1
  • Gross weight 3.7 kg
  • Dimensions 356x64x309 mm

C5S140 Installation and Connection Guide

Download Data Sheet
