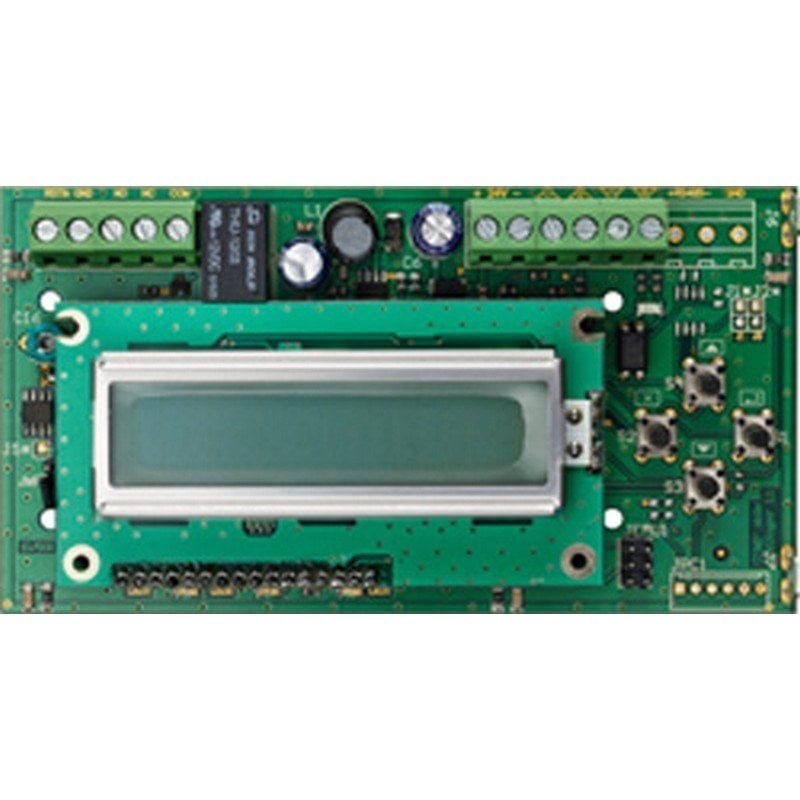

MAG Logger is a LOG module for recording and viewing of events in MAG 8 and MAG8Plus Fire Control Panels. The module can be built-in in the fire panel box.
All of the events are stored in a non-volatile memory. The LOG module has a real time clock powered from own battery. The information for the events is received by interface with the MAG8/MAG8plus Fire Control Panels. The LOG module can be built-in in the fire panel box (for MAG8Plus) or can be placed in a separate small plastic box (for MAG8).
- Memory for 8190 events
- Operation keypad with 4 buttons
- LCD display with backlight
- Multi language menus
|Power supply||17 – 30 VDC|
|Consumption in stand-by mode||25mA|
|Consumption with activated backlight||55mA±2mA|
|Maximum consumption with activated backlight and relay output||76mA±2mA|
