Description

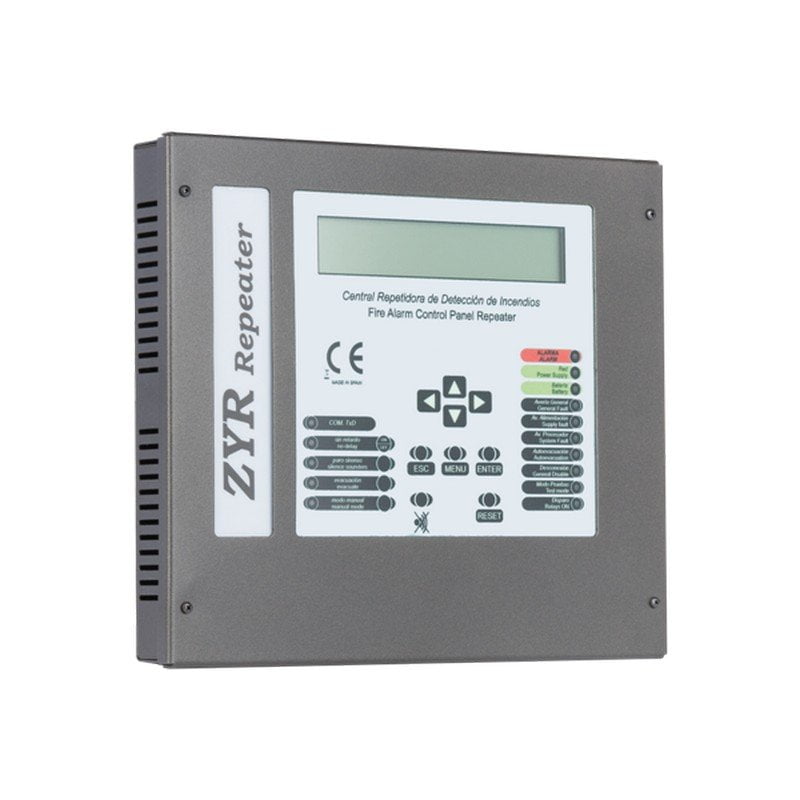

Algorithmic repeater control panel for Cofem addressable system.
Description:
The LYON / ZAFIR / COMPACT Lyon control panel allows to connect up to 15 repeaters, using a 4 wires of 1,5 mm2 connection (two for supply and two for communication for RS485 line). The two wires of the RS485 line will be connected from the control panel to the corresponding repeaters. The repeater wiring is realized like the figure attached.
From 30 V output of the control panel power supply is allowed up to 3 repeaters. For C-Lyon and Zafir control panels is allowed supply 1 repeater. The rest of repeaters should be connected from the 30 V output of an external power supply.
The wiring of repeaters, communication and power wires, will be realized with twisted and shielded halogen-free of 2×1,5 mm2 wire, maximum length up to 1200 m.
In the end of the line should be connected a 120 Ω resistance, in the back panel of the last repeater.
Brand
COFEM
COFEM distributed by Smart Security is a leading giant in the fire sensors and alarm industry.
Their hard work and dedication for 45 years make them a key player in the industry.
thus as always Smart Security only features the best products for your safety at home and work.
COFEM has a variety of products, and these are top-notch devices with a mission to keep you as safe as possible.
First in the line of products at Smart Security are the conventional panels, sensors, and alarms.
Moreover, these devices are accurate reliable, and able to show you the general location of fires.
Next, we have the addressable panels, sensors, and alarms.
These beauties are super accurate devices that have the power to be pinpoint accurate in their detection.
All these features are taken into account when Smart Security chooses to install any product for you because you are like family.
So call us now at Smart Security, and benefit from a free consultation with our expert operators.
