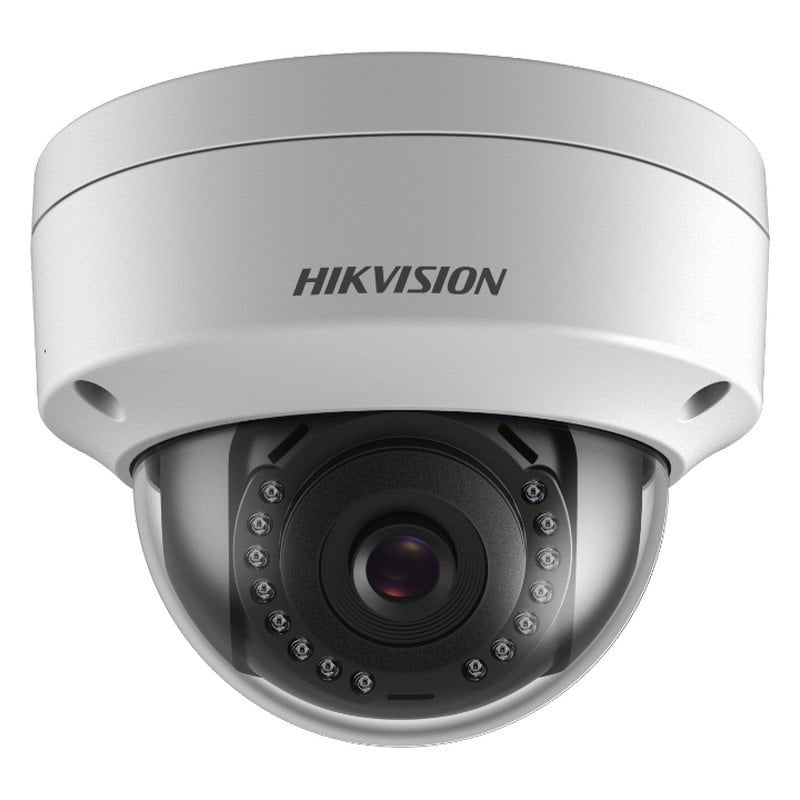

Description
- High quality imaging with 2 MP resolution
- Efficient H.264 compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Water and dust resistant (IP67).
Specification
Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Min. IlluminationColor: 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic RangeDigital WDR
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
- DNR3D DNR.
Lens
- Lens2.8, 4 mm
- ApertureF2.0
- FOV2.8 mm @F2.0, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV: 135.5° 4 mm @F2.0, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV: 102.5°
- Lens MountM12.
Illuminator
- IR RangeUp to 30 m.
Video
- Max. Resolution1920 × 1080
- Video CompressionMain stream: H.264+, H264 ;Sub stream: H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- Video Bit Rate32 Kbps to 8 Mbps.
- Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Scheduled
- Main Stream Max. Frame Rate50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240).
Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, UDP, QoS
- APIONVIF (PROFILE S), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users 3 levels: Administrator, Operator, and User
- ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0-11
- Alarm TriggerMotion detection, illegal login
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering.
Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port.
General
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug;PoE (802.3af, class 3)
- Power Consumption And Current12 VDC,0.3 A, Max. 3.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
- MaterialBottom base: metal, front cover & bubble: plastic
- DimensionsΦ 111 mm × 82.4 mm (4.4″ × 3.2″)
- WeightCamera: approx. 400 g (0.9 lb.) ;With package: approx. 600 g (1.3 lb.)
- Interface ProtectionIP67, IK10.
