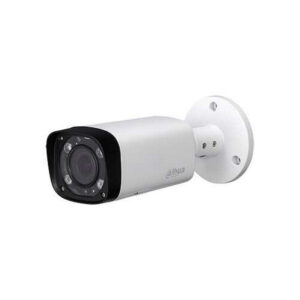

4MP WDR IR Bullet Network Camera

Out of stock

SKU IPC-HFW2421R-ZS-VFS-IRE6 Category
SKU IPC-HFW2421R-ZS-VFS-IRE6 Category

Out of stock

Description

  •  1/3” 4Megapixel progressive CMOS
  •  H.264+ & H.264 dual-stream encoding
  •  20fps@4M(2688×1520) & 25/30fps@3M (2304×1296)
  •  WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  •  Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  •  Micro SD card slot, up to 128GB
  •  2.7~12mm varifocal lens
  •  Max IR LEDs Length 60m
  •  IP67, PoE
Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Effective Pixels 2688(H) x1520(V)
RAM/ROM 256M/16M
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 60m(197ft)
IR On/Off Control Auto/ Manual
IR LEDs 4
Lens
Lens Type Motorized(-ZS),Manual(-VFS)
Mount Type Board-in
Focal Length 2.7mm~12mm
Max. Aperture F1.4
Angle of View H:100°~35°, V:54°~20°
Focus Control Auto (-ZS),Fixed(-VFS)
Close Focus Distance 0.3m
DORI Distance Lens Detect Observe Recognize Identify
W 68m(223ft) 27m(89ft) 14m(49ft) 7m(23ft)
T 193m(633ft) 77m(253ft) 39m(128ft) 19m(62ft)
PTZ
Pan/Tilt Range Pan:0° ~360 ° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.264+/H.264
Streaming Capability 2 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480) /

CIF(352×288/352×240)

Frame Rate 4M(1~20fps)/3M(1~25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)

Local PC for instant recording

Micro SD Card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <12.95W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 72mm×80mm×212.8mm ((2.8″ x 3.1″x 8.4″))
Net Weight 0.685Kg (1.51lb)
Gross Weight 0.86Kg (1.90lb)

Additional information

Brand

DAHUA

Device Type

Lense

Resolution

Shape

Brand

DAHUA

DAHUA technology solutions distributed in Lebanon by Smart Security, are the world-leading solution and service provider. Also, DAHUA is a nationally certified enterprise technology center and national innovative pilot enterprise. So with all these accomplishments by DAHUA wouldn't you want to add these products to your dear customers? Thus, Smart Security provides you with a wide variety of DAHUA solutions in Lebanon that are sure to fulfill your needs. First, the cameras are split between Analog and IP cameras. DAHUA analog cameras come in various shapes and sizes and have different resolutions depending on your needs. Furthermore, The Analog Cameras come in a resolution range of either 2 megapixels or 4 megapixels. Also, DAHUA IP cameras come in various shapes and sizes with various resolutions. The range of resolutions available for the IP cameras, is either 2 megapixels, 3 megapixels, or 4 megapixels. Additionally, Smart Security offers you Analog DVR, IP NVR, as well as XVR of different varieties in Lebanon. These will surely make you satisfied regardless of your choice because you bought them from the best distributor. But we are not the best just because of our expert certified employees, but because we truly care about you and your safety. So call our operators now at Smart Security and benefit from our free consultancy while it lasts.
