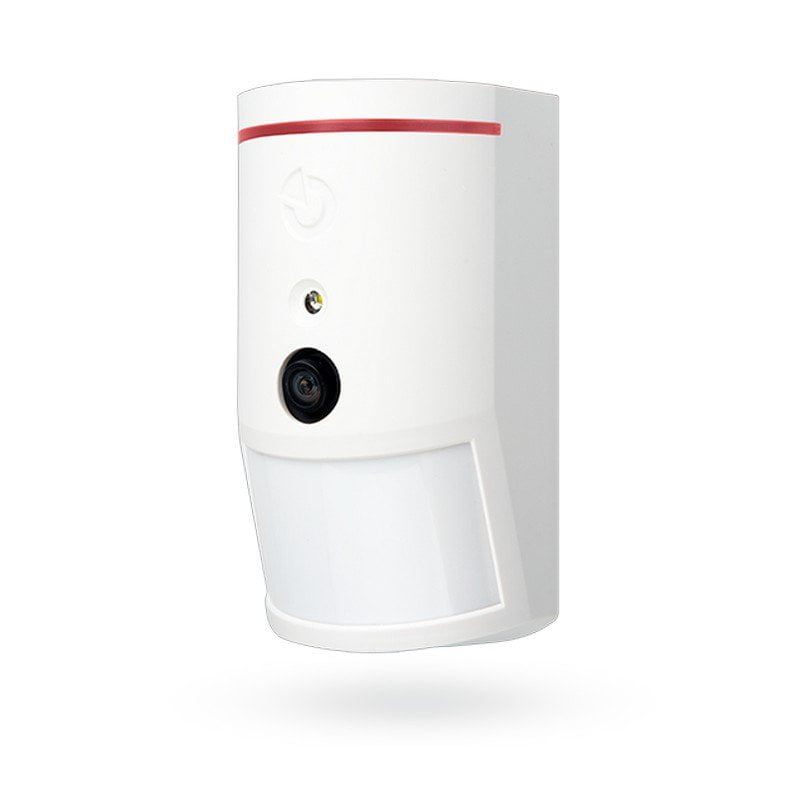

JA-120PC (90) Bus PIR motion detector with 90° photo-verification camera

Out of stock

SKU JA-120PC (90) Category
SKU JA-120PC (90) Category

Out of stock


Used for motion detection inside buildings, including visual alarm confirmation. Taking a photo is activated by motion, so the cause of the alarm is always indicated in the image. Guaranteed detection coverage 90°/12 m.

JA-120PC (90) Bus PIR motion detector with 90° photo-verification camera

  • Vision angle of the camera: 90°
  • Resolution of photos: LQ 320*240; HQ 640*480 pixels
  • Flash range: max. 3 metres
  • Power via the control panel bus
  • The detector has impulse activation
  • The detector can be used to control programmable PG outputs
  • The resistance to false alarms is adjustable to two levels
  • The detector is a component of the JABLOTRON 100+ system, is addressable and occupies one position in the system

Technical specifications

Power from the control panel BUS +12 V (+9 … +15 V)
Current consumption
– nominal for the backup supply calculation 5 mA
– maximum for cable choice 250 mA (with high flash intensity)
Recommended installation height 2.5 m above the floor
PIR detection angle/detection coverage 90°/12 m
Horizontal camera capture angle 90°
Range of the flash max. 3 meters
Camera resolution LQ 320×240; HQ 640×480 pixels
Photo size LQ/HQ (typically) 2-20kB/2-64kB (6kB/5kB)
Typical (LQ) photo transmission time to the control panel up to 20 s. (10 s)
Ideal (HQ) photo transmission time to the control panel up to 130 s (60 s)
Typical photo transfer time to the server 15 s/GPRS; 2 s/LAN
Dimensions, weight 110 x 60 x 55 mm, 102 g
Classification Security grade 2/Environmental class II
– according to EN 50131-1, EN 50131-2-2
– operational temperature range -10 to +40 °C
– operational environment indoor general
– certification body Trezor Test s.r.o. (no. 3025)
Also complies with EN 50130-4, EN 55032

Additional information


Jablotron (Europe)

Device Type

Price Range




JABLOTRON is the leading provider of intelligent security devices distributed by Smart Security in Lebanon. It is an international technology company that develops innovative products. and these products are designed to secure your smart home and office from all expected threats. They have received many certifications including an ISO 9001, ISO 13485, and an ISO 27001. So All these certifications are clear evidence that JABLOTRON is at the top of their game regarding quality and assurance. Moreover, their products are a world bestseller across 73 countries and that shows trust, and satisfaction in their products. Additionally, they have over 30 years of experience in the field of developing and production of alarm systems. JABLOTRON products from Smart Security include alarm panels, Bus and wireless motion sensors, bus; and wireless smoke sensors. Also bus; and wireless magnetic contacts, keypads; and controllers, as well as siren sounders. That is why Smart Security makes JABLOTRON a choice product when improving your smart home, and office security. Furthermore, Smart Security provides you with capable staff that are experts at installing, maintaining, and fixing Jablotron products if needed. In the end, it is your turn to secure your home by buying these products to safeguard yourself or your company. So call Smart Security now, and have the benefit of a free consultancy from our professional consultants.
