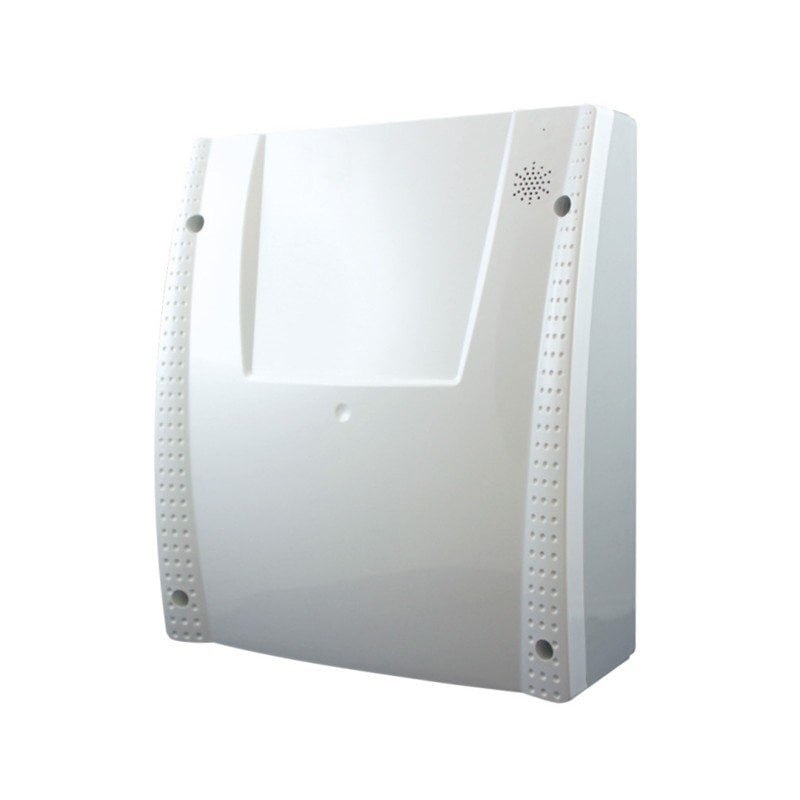

VAP-404 4 Zone Board Alarm Control Panel Teknim

Description

• 4 zones on main control panel, expandable to 8
  zones with optional zone expansion module or
  hardwire zone-doubling.
• Using each zone with NC or NO contacts devices
  with or without EOL resistors.
• Selecting each zone as 12 different type (door,
  window, home, away, 24 hours, fire, tamper, panic etc.)
• Entry/Exit delays for each partition

INTRUSION PANEL

-4 zones on main control panel, expandable to 8
zones with optional zone expansion module or
hardwire zone-doubling.

-Using each zone with NC or NO contacts devices
with or without EOL resistors.

-Selecting each zone as 12 different type (door,
window, home, away, 24 hours, fire, tamper, panic etc.)

-Entry/Exit delays for each partition

-Adjustable zone response speed.

-Additional features of the zones (Entry/exit zone,
follower zone, last-door zone, zone with audio / silent etc.)

-Arming panel automatically without delay time by determining
Entry/Exit zones, when someone exits from last-door.

-Adjusting each zone as special zone in order to transmit alarm
message to the central station without alarm siren. (for gas
detectors, flood detectors)

-Selectable cross zone and double hit features to avoid from false alarm.

-Walking test for each zone

-Bypassing each zone manually or automatically Read More
